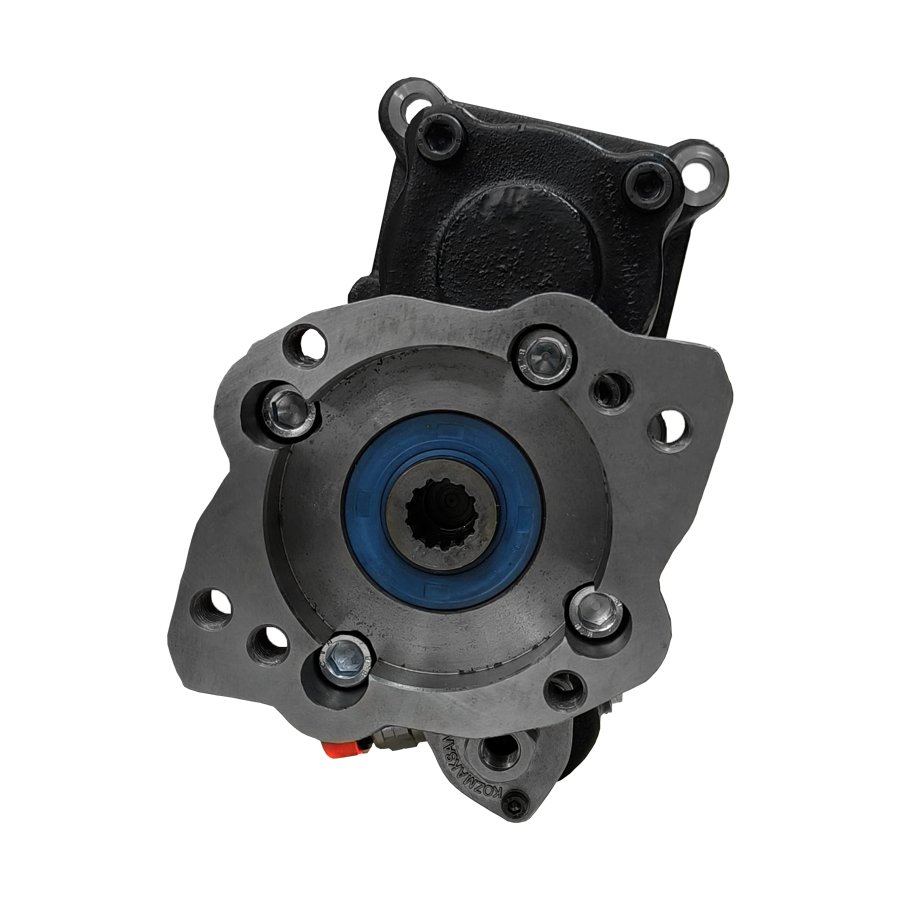

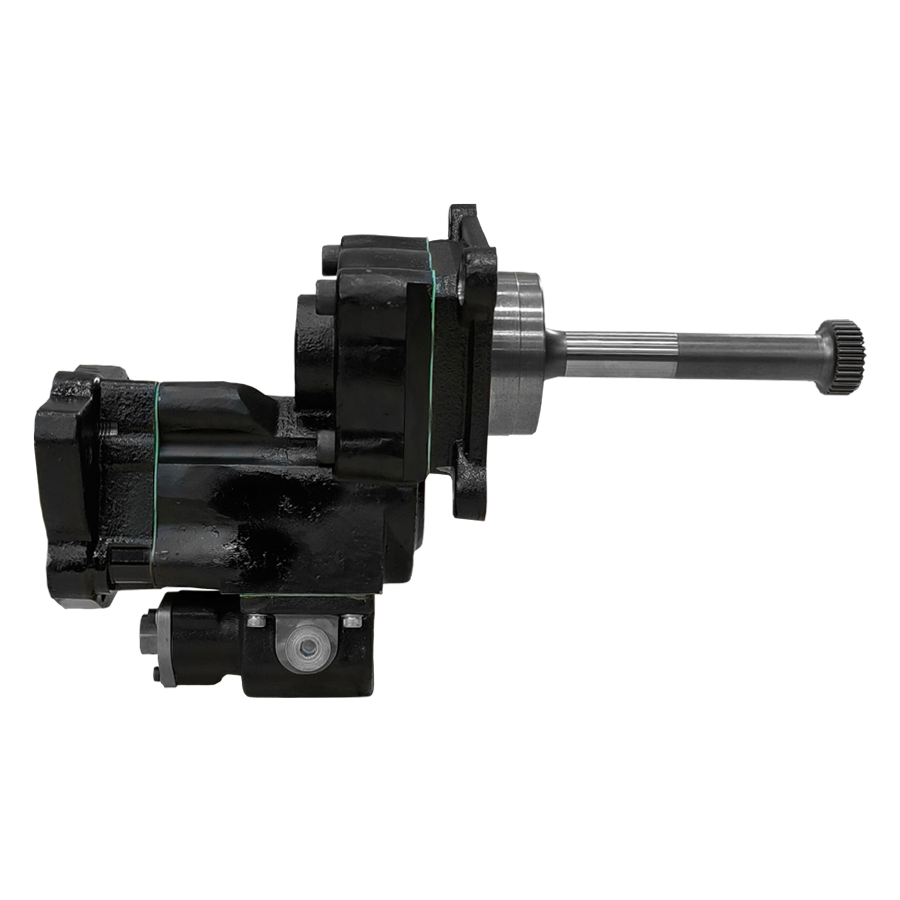

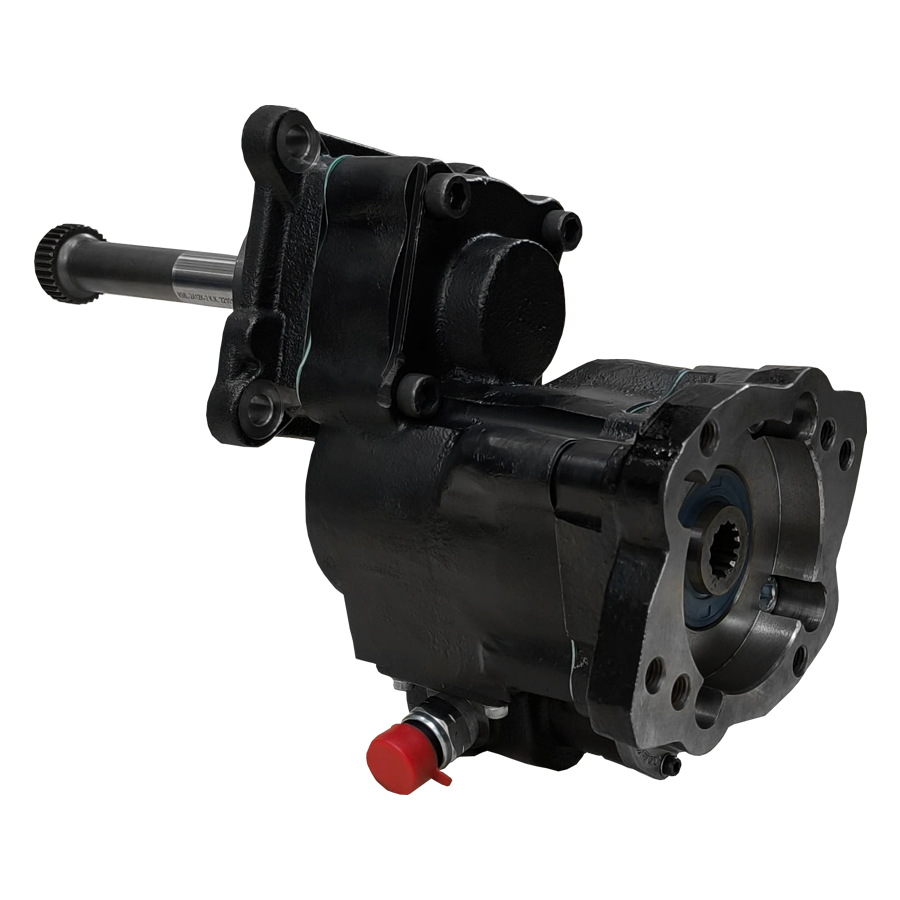

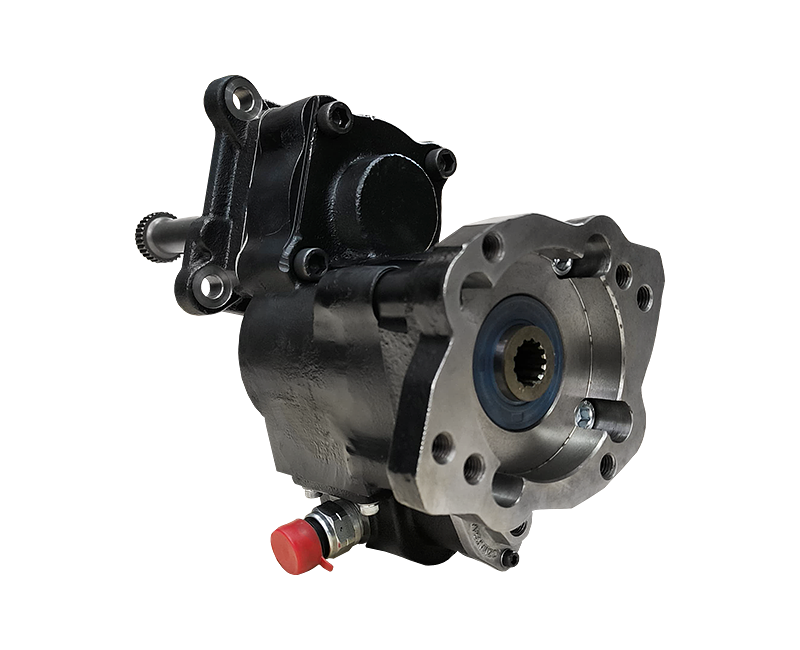

Volvo Power Take-Off | VLV-KUP3

VLV-KUP3 Properties

Comes with Mounting Kit
Mounting Type: Rear
Control Type: Pneumatic
Weight: 33 lb
Sense of Rotation: Engine Shaft
1 Year Warranty
10 Years Spare Parts Warranty

Technical Catalog

Applications: Septic Truck, Garbage Truck, Bucket Truck, Water Truck, Crane Truck, Fire Fighting Truck, Tow Truck

VLV-KUP3 Technical Data

Max. Torque	317 LBS-FT
Max. Power	61 HP
Avaliable Internal Ratios	1/1.2
Max. Speed	2000 RPM

VLV-KUP3 Options for Output

1410 Series Companion Flange
DIN 5462 8x32x36 ISO 4-Bolt
1¼” Round Keyed Shaft
SAE-B 2 or 4-Bolt Flange, SAE B Shaft (7/8”-13 T)
SAE-B 2 or 4-Bolt Flange, SAE BB Shaft (1”-15 T)
SAE-C 2 or 4-Bolt Flange, SAE C Shaft (1¼-14 T)
SAE-C 2 or 4-Bolt Flange, SAE C Shaft (1½”-23 T)

Compatible Transmission Code List

AT 2412D / AT 2512C
ATO 2612D (14,94)
I-SHIFT VOLVO-RVI Automatic Transmission
