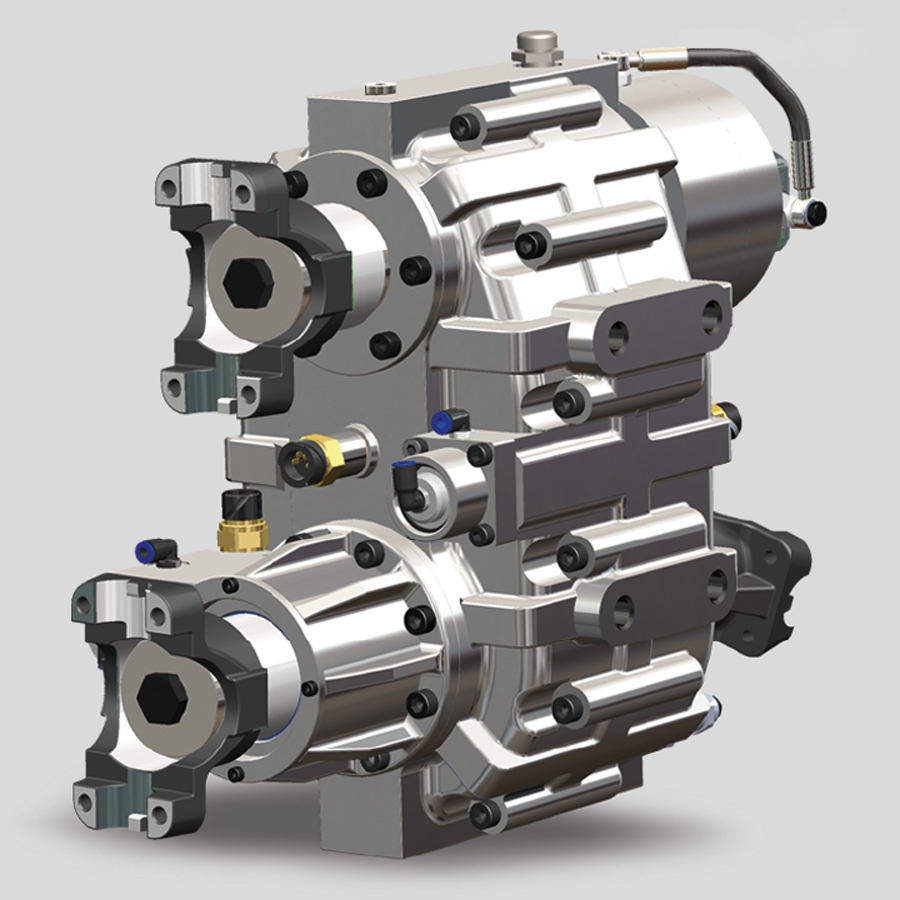

KTC.301 | Light Duty 4x4 Transfercase

KTC.301 is a Light Duty Full Time 4x4 Transfer Case. KTC.301 provide solve many difficulties on 4x4 Drive System thanks to High Tech features.

KTC.301 Light Duty 4x4 Transfercase Properties

Full Time 4x4 Drive
Light Design Aluminium Body
Differential lock system
High and Low Gear
Built-in Lubrication System
Sense of Rotation: Same as Input
Mounting Type: Split shaft
1 Year Warranty
10 Years Spare Part Back Up

Applications: Mining Vehicles, Military Vehicles, Off-Road Vehicles, Railway Line Maintenance Vehicles

KTC.301 Technical Data

Max. Input Torque	2507 LBS-FT
Max. PTO Output Power	75 HP
High / Low Gear	0.89 & 0.49
Required Oil	55 oz
Weight	150 LBS
Control Type	Pneumatic

KTC.301 Options
